Classic Frame

The Classic Frame offers a wide range of frame patterns - from classic wooden frames to festive Christmas decorations, fabric, brick and even animal world patterns (peacock feather, leopard skin, etc). These patterns are available in both editions (plugin and standalone) and let you generate various frames. You can also load your own texture to create an unique frame.

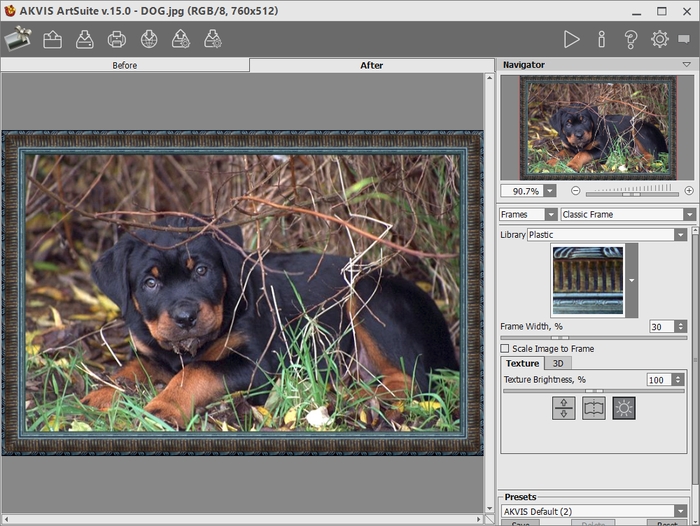

Classic Frame

The Settings Panel lets choosing a texture to generate a frame and adjust the parameters for the selected frame.



Texture. Select a group from the list and a texture (pattern) from the texture Library.

Texture Library

The program comes with a rich collection of textures. Textures for the Classic Frame are found under Classic and are grouped in several sets. Here you can see a group with classic wooden frames, as well as groups with animal textures (peacock feather, leopard skin, etc.), bricks, festive elements and so on.

The selected (current) texture is displayed in a square button which also lets opening the Library.

Texture

Click on the square, you will see all textures in the selected group (for example, Wooden). Now you can select a texture by clicking on it.

Wood Textures



Adjust the following parameters for this digital picture frame:

Frame Width (0-100%). This parameter sets the width of the frame. At 0% there is no frame, at 100% the width of the frame makes a quarter of the minimum image size (as to its width or height). For example, for an image 600 x 800 pixels the 100% width of the frame is calculated as follows: 1/4 from the minimum size (600 px) is 150 pixels.

Classic Frame Width = 30%
Frame Width = 30%
Classic Frame Width = 70%
Frame Width = 70%



Scale Image to Frame. When the check-box is enabled, the image is scaled to fit the frame. When the check-box is disabled, the frame overlays the image on it borders.

Scale Image to Frame Check-Box Disabled
Scale Image to Frame
Check-Box Disabled
Scale Image to Frame Check-Box Enabled
Scale Image to Frame
Check-Box Enabled



Texture Brightness (0-200%). This parameter changes the brightness of the original texture. The brightness of the original texture equals 100%. To darken the frame, set the value of the parameter less than 100%; to brighten the frame, set a value higher than 100%.

Texture Brightness = 50%
Texture Brightness = 50%
Texture Brightness = 130%
Texture Brightness = 130%



Flip Texture Vertically . When the button is activated, the texture is oriented to the horizontal line, that is top-down. As a result the outer and the inner border of the frame swap over.

Flip Texture Vertically Button Disabled
Flip Texture Vertically Button Disabled
Flip Texture Vertically Button Enabled
Flip Texture Vertically Button Enabled



If the original texture is not perfect, the joins are visible and the frame is uneven. To smooth the joints, use the buttons: Mirror Texture to Align and Average Brightness . These buttons can be used separately or together.

Let's take a texture having uneven brightness - the left part of the texture is brighter than the right.

Texture

If you generate a frame using this texture with both buttons (Mirror Texture to Align and Average Brightness) disabled, you will have the following picture:

Sample

Mirror Texture to Align Button Enabled
Mirror Texture to Align
Button Enabled
Average Brightness and Mirror Texture to Align Buttons Enabled
Average Brightness and
Mirror Texture to Align
Buttons Enabled

Let's take one more example to show how the parameters Average Brightness and Mirror Texture to Align work. We take the following texture:

Texture

Buttons Disabled
Buttons Disabled
Mirror Texture to Align Button Enabled
Mirror Texture to Align
Button Enabled
Average Brightness Button Enabled
Average Brightness
Button Enabled

In this case it is enough to enable the Average Brightness button to achieve a good result.



3D Tab

Enable the Apply 3D Effect check-box to give the frame a 3D look.

Original Frame 3D Effect
3D Effect
(Move your mouse over the image to see the original frame)

Effect parameters:

Light Source. Use the dagger on the ball to set the probable light source that affects the appearance of the shadow.

Light Source

Volume (0-100). This parameter affects the depth of the picture frame. At 0, the texture is flat.

Volume = 20
Volume = 20
Volume = 100
Volume = 100

Smooth Transition (-50..50). The parameter adjusts the smoothness of the border between the convex part and the bevel.

Smooth Transition = -50
Smooth Transition = -50
Smooth Transition = 50
Smooth Transition = 50

Bevel Width (0-100). This parameter sets the size of the bevel.

Bevel Width = 35
Bevel Width = 35
Bevel Width = 75
Bevel Width = 75
