Workspace

AKVIS ArtWork can work independently as a standalone program as well as a plugin to a photo editor.

The AKVIS ArtWork workspace looks like this:

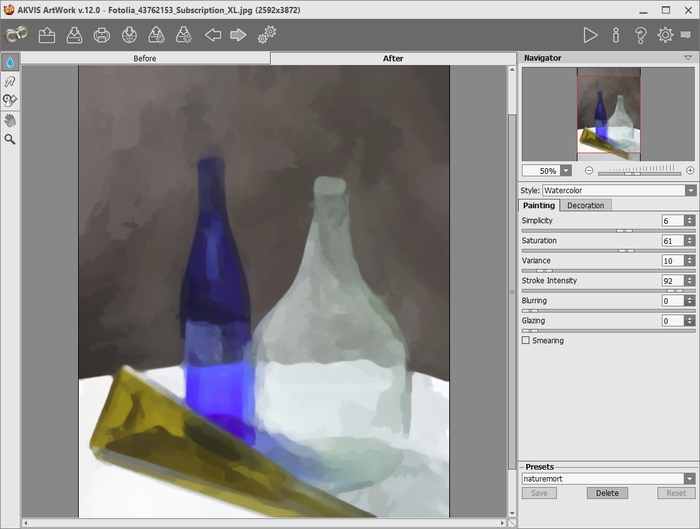

Workspace of AKVIS ArtWork
Workspace of AKVIS ArtWork



The left part of the AKVIS ArtWork window is taken by the Image Window with two tabs: Before and After. Under the Before tab you can see the original photo. The After tab shows the resulting image. You can switch between the windows by left-clicking on the tab with mouse button. To compare the original and the resulting images, click on the image and hold the button pressed - the program will currently switch between tabs.



In the upper part of the program's window you can see the Control Panel and the following controls:



On the left side there is the Toolbar, for all effects except Linocut, with the following buttons:

Pre-Processing Tools (in the Before tab):

Post-Processing Tools (in the After tab, for Home Deluxe and Business licenses):

Additional Tools:



Navigate and scale the image using the Navigator. The frame in the Navigator surrounds the area of the image which is visible in the main window; the area outside of the frame will be shaded. The frame can be dragged, thereby changing the visible portion of the image. To move the frame, place the cursor within it, left click the mouse, and then drag.

Navigator
Navigator

To scroll the image in the main window you can press the spacebar on the keyboard and drag the image with the left mouse button. Use the scroll wheel of the mouse to move the image up/down, by keeping the Ctrl key pressed – to the left/to the right, by keeping the Alt key pressed − scale the image. Right-click on the scroll bar to activate the quick navigation menu.

Use the slider or the buttons and , to scale the image in the window. When you click on the button or move the slider to the right, the image scale increases. When you click on the button or move the slider to the left, the image scale reduces.

You can also change the image scale by entering a new coefficient into the scale field. The fall-down menu shows some frequently used coefficients.

You can use hot-keys to change the image scale + and Ctrl++ (++ in Mac) to increase the image scale and - and Ctrl+- (+- in Mac) to reduce the scale.



Under the Navigator there is the Settings Panel with the Painting and Decoration tabs:

Below, in the Presets field you can save the current settings as a preset to use them in the future. The current settings can be saved, edited, deleted. When you launch the program, it uses the settings of the last used preset.

Under the Settings Panel you can see Hints for the parameters and buttons when you hover over them with the cursor. You can choose where the hints will be shown or hide them in the program's Preferences.
